Brand: TY
Min. Order: 20roll
wire mesh

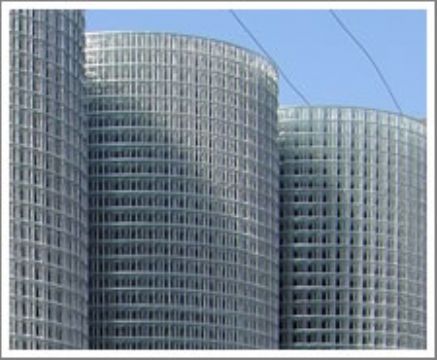

welded wire mesh
Material: Low carbon steel wire, stainless steel wire

Weaving and characteristics:


Hot dipped galvanizing after weaving
Weaving with hot dipped galvanized iron wire
Electric galvanizing after weaving
Weaving with electric galvanized iron wire
PVC coated welded wire mesh




Specification List of Welded Wire Mesh
Opening Wire Diameter
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.


Galvanized Fencing Mesh
Opening Wire Diameter
In inch In metric unit(mm)
2" x 3" 50mm x 75mm 2.0mm,2.5mm,1.65mm
3" x 3" 75mm x 756mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4" 50mm x 100mm 2.11mm,2.5mm
4" x 4" 100mm x 100mm 2.0mm,2.5mm
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.


PVC Coated Welded Mesh
Opening Wire Diameter
In inch In metric unit(mm)
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21
3/4" x 3/4" 19mm x 19mm 16,17,18,19,20,21
1" x 1" 25.4mm x 25.4mm 15,16,17,18,19,20
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.2m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
