Brand: TY
Min. Order: 20roll
wire mesh
square wire mesh
galvanized wire mesh
Galvanized Square Wire Mesh Application: As mosquito net and industrial sifting sieves in industries like sugar and chemical, stone crusher screening, etc.

Variety according to processing means:
Square Wire Mesh Screen, hot dipped galvanizing before weaving
Square Wire Mesh Screen, hot dipped galvanizing after weaving
Square Wire Mesh Screen, electric galvanizing before weaving
Square Wire Mesh Screen, electric Galvanizing after weaving

Tianyu offers galvanized square wire mesh crimped or plain woven, with different roll size, mesh counts, opening and wire diameter. Standard sizes, please refer to lists below.

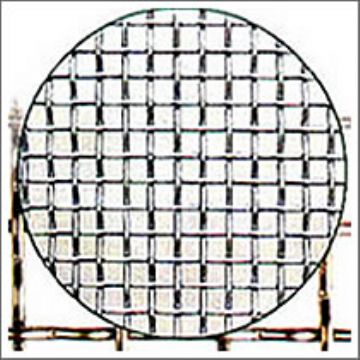

Galvanized Square Wire Mesh
mesh wire diameter (mm) opening (mm) mesh wire diameter (mm) opening
3x3 1.60 6.87 20x20 0.27 1.00
4x4 1.20 5.15 22x22 0.25 0.90
5x5 0.95 4.13 24x24 0.23 0.83
6x6 0.80 3.43 26x26 0.20 0.78
8x8 0.60 2.57 28x28 0.18 0.73
10x10 0.50 2.04 30x30 0.15 0.70
12x12 0.50 1.61 35x35 0.14 0.59
14x14 0.40 1.41 40x40 0.14 0.50
16x16 0.35 1.24 50x50 0.12 0.39
18x18 0.30 1.11 60x60 0.12 0.30

Note: Sizes can be customised. Special specifications available according to customers specific requirements. Contact us now.
