Brand: SHIBO
Model: box -1400
Min. Order: 1pcs

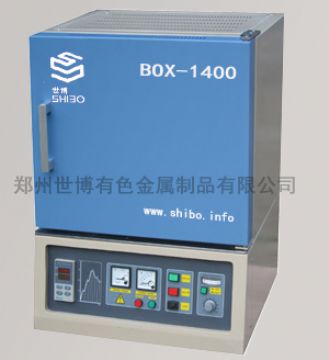

BOX-1400 BOX FURNACE
box furnace
BOX-1400 Box Furnace uses SIC heating element as heating element, adopting 50segments programme to control the temperature. Double-layer steel structure with air cooling system. And the top of furnace can be equipped vent. The chamber and control system is designed perfectly, and the chamber uses alumina fiber, saving energy, small volume, fast temperature ascending and descending, it is an excellent product for university, science research institution, mining industry to make powder, ceramic sinter and anneal.

Model Chamber size
Power (kw)
Voltage (V)
  Estimated Weight (kg)
Depth (d) Width (w) Height (H)
BOX1400-I 200 150 150 4 220   100
BOX1400-II 300 200 200 6 220   100
BOX1400-III 400 250 250 7 220   120
Above. Both inserted
BOX1400-IV 400 300 300 10 380 160
BOX1400-V 500 400 400 16 380 200
  Insert great and above
