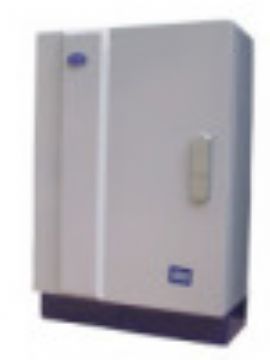

Brand: asicon
Model: TE-9002A/B/C/D
Min. Order: 1台
mobile signal repeater
repeater
GSM signal repeater
TYPE
TE－9002A
TE－9002B
TE－9002C
TE－9002D

Frequency range
Uplink
890-915MHz

Downlink
935-960MHz

Gain
Uplink
55--85dB
55--85dB
55--85dB
50--80dB

Downlink
60--90dB
60--90dB
60--90dB
55--85dB

Gain adjustable step
1dB

Gain adjustable precision
±1.5 dB

Selection characteristic
±0.2MHz <-7dB@6MHz BW

±0.4MHz <-25dB@6MHz BW

±0.6MHz <-35dB@6MHz BW

±1MHz ＜-50dB@6MHz BW

Output power (Po)
Downlink
Po≥40dBm
Po≥37dBm
Po≥33dBm
Po≥30dBm

Uplink
Po≥43dBm
Po≥40dBm
Po≥37dBm
Po≥33dBm

I/O impedance
50Ω/N connector

I/O return loss
≤-15dB

Noise figure
≤4dB

Spurious emission
≤-36dBm（9KHz—1GHz）

≤-30dBm（1GHz—12.5GHz）

Intermodulation attenuation
≥36dBC

Transmission Delay
≤5μS

Ambient temperature
-15℃-55℃

Ambient humidity
≤95%(no dew)

Power supply
AC220V±10% 45-55Hz

Size

71×48.5×33.5cm
71×48.5×33.5cm
62×47×29cm
62×47×29cm

Weight

34 Kg
34 Kg
23 Kg
22Kg

Reliability
To the GB6993-86 standard

Electromagnetic compatibility
To the ETS300 694-4 standard

Panel display
LED display
Power, uplink, downlink emission, and alarm indicators

Alarm
Overheat and big standing wave alarms
