Brand: asicon
Model: TE-9102A-C/B-C/C-C
Min. Order: 1台

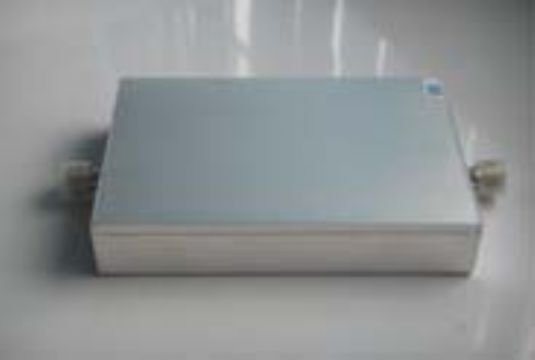

mobile signal booster
mobile signal repeater
CDMA signal booster
SPECIFICATION
TE-9102A-C-X
TE-9102B-C-X
TE-9102C-C-X

Frequency range (MHz)
Uplink 825-830

Downlink 870-880

Gain ( dB)
uplink
Gp≥55
Gp≥60
Gp≥65
Gp≥70
Gp≥45
Gp≥50

downlink

Export Power(dBm)(Po)
≥20
≥20
≥20

Pass band ripple
≤4dB

Guard band rejection
≥2.5 MHz; ≤-10dBc
≥10 MHz; ≤-40dBc

I/O impedance
50Ω/N connector

I/O return loss
≤-10dB

Noise figure
≤8dB

Intermodulation
(9KHz～1GHz)≤-30dBm

(Po=13dBm)
(1～12.75GHz)≤-30dBm

Transmission Delay
≤0.5μs

Ambient temperature
-10℃～50℃

Power supply
AC110～220V±10% 45～55Hz

Size
148mm×106mm×33mm

Reliability
To the GB6993-86 standard

Electromagnetic

compatibility
To the ETS300 694-4 standard

Function
a) Power supply work display

b) Export power display

Note
X means frequency range can be designted
