Dcs Signal Booster

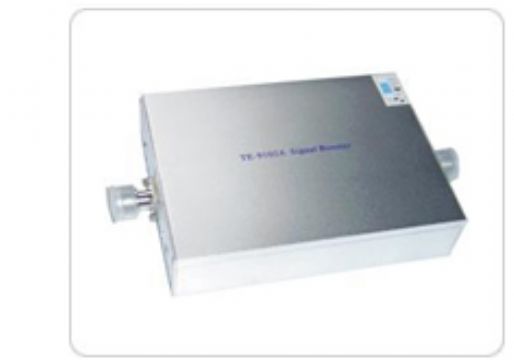

Dcs Signal Booster

Dcs Signal Booster

Detailed Selling Lead Description
Brand: asicon
Model: TE-9102A-P/B-P/C-P
Min. Order: 1台/piece
signal booster
signal repeater
DCS signal booster
SPECIFICATION
TE-9102A-D
TE-9102B-D
TE-9102C-D

Frequency range (MHz)
Uplink 1710-1785

Doenlink 1805-1880

Gain ( dB)
Uplink
Gp≥55
Gp≥60
Gp≥65
Gp≥70
Gp≥45
Gp≥50

Downlink

Export Power(dBm)(Po)
≥17
≥17
≥17

Pass band ripple
≤20dB

Guard band rejection
(BW-60dB)≤104MHz ,
(BW-70dB)≤107MHz

I/O impedance
50Ω/N connector

I/O return loss
≤-8dB

Noise figure
≤8dB

Intermodulation

(Po=13dBm)
(9KHz~1GHz)≤-20dBm

(1~12.75GHz)≤-30dBm

Transmission Delay
≤0.5μs

Ambient temperature
-10℃~50℃

Power supply
AC110~220V±10% 45~55Hz

Size
228mm×106mm×33mm

Reliability
To the GB6993-86 standard

Electromagnetic

compatibility
To the ETS300 694-4 standard

Function
a) Power supply work display

b) Export power display
