Brand: A.YITE
Model: GE-314
Min. Order: 1

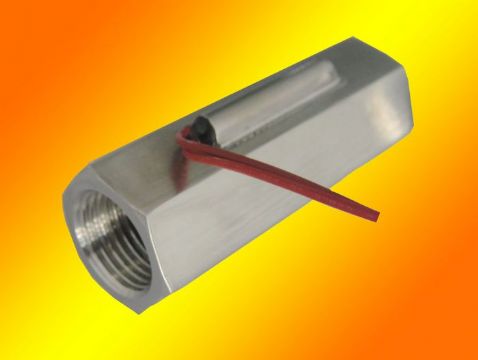

Small Size Flow Switch
Stainless Steel Flow Switch
Paddle Flow Switch
The body of GE-314 flow switch is Stainless Steel material, used in the Petrochemical Industry, Sewage Treatment, Welding Equipment, Laser Systerm, to measure or control the flow rate.

A permanent magnet is installed in the GE-314, it is a high performance permanent magnet. The permanent magnet could control the BMF, the BMF is sealed in the top of GE-314. This switch is stability and precise with simple structure.

1. Media Temperature -30~125 C
2. Average Pressure Loss 0.01bar at Qmax.
3. Hysteresis depending on switch value, minimum 8 Liter per Hour.
4. Metering Substances Oil, Water, Gas, Air (If special substances, please declare)
5. Max Pressure 30bar (100bar could be custom-made)
6. Protection Class IP65
7. Install Position Horizontal or Vertical(The Wire must be top)
8. Pipe Size DN10, DN15, DN20, DN25
9. Materials Brass or Stainless Steel
