Brand: A.YITE
Model: 325
Price: USD 215 / pc
Min. Order: 50 pc

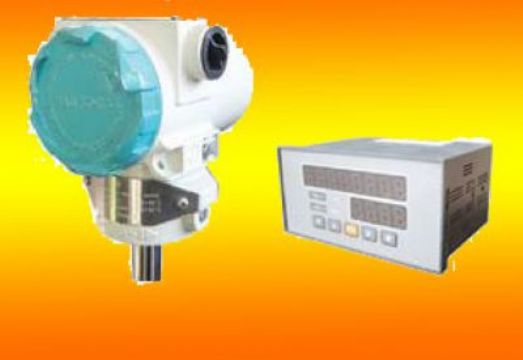

Thermal Gas Mass Flow Switch
GE325 Thermal Gas Mass Flow Sensor
The Thermal Gas Mass Flow Switch is used to measure and monitor the flow for Air, Gas, Corrosive Gas, Rare Gas, etc. With same structure as thermal mass flow meter, the sensor is protect by glass lamella, sensitive and corrosion resistant.

1. Power Supply: 5A/220VAC; 5A/24VDC
2. Output Switch: 1 SPDT or 2 SPDT
3. Analog Output: 5~10V, 4~20mA
4. Length of Probe: 50mm~1500mm
5. Probe Material: Stainless Steel 316 or 304 or Hastelloy Alloy
6. Connection: 3/4NPT, M20x1.5, Flange DN10~DN250
7. Max Pressure: 2 Mpa
8. Flow Range: 0~5m/s; 0~10m/s; 0~30m/s; 0~50m/s
9. Temperature: -10C ~ 80C
10. Protect Grade: IP65
