Brand: A.YITE
Model: FS-25
Min. Order: 5

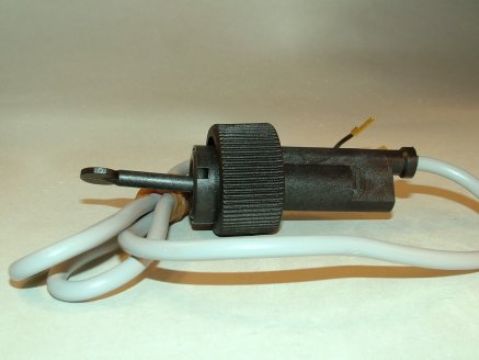

FS-25 Plastic Paddle Flow Switch
Sika Flow Switch
Water Flow Monitor
Specification

* Low Pressure Drop & Anti Corrosion environment to control flow, e.g. Swimmin Poll Heating Pump, Sea Water Pump, Central Heating Water Systerm
* No Pressure Loss
* Proven paddle type in compact design, especially for serial applications.
* Glass-fibre reinforced plastic ensures high stability
* With pipe section or for push-in installation into manifolds of customer fittings
* Long-term stable switchingpoint, retreatment of paddle by magnetic force, no spring fatigue

　

Character

* Max Voltage 250VAC
* Max Current 1A (50VA)
* Pipe Size: 20mm ~ 65mm
* Output SPDT Micro Switch
(Normal Open is standard, N.C is optional)
* Max Pressure 10 bar
* Work Medium Water, Seawater, Oil, Air
(Other Medium is acceptable)
* Work Temperature －10℃～100℃
* Pressure Loss No Loss
* Protection Grade IP65
* Cable 0.3mm2×2 , L1000mm
* Shell Material PPO
* OEM is acceptable
