Brand: JP
Model: PHD-65
Price: USD 2000 / set
Min. Order: 1 set set
Balancing Machine
disc Balancing Machine
Brake disc Balancing Machine

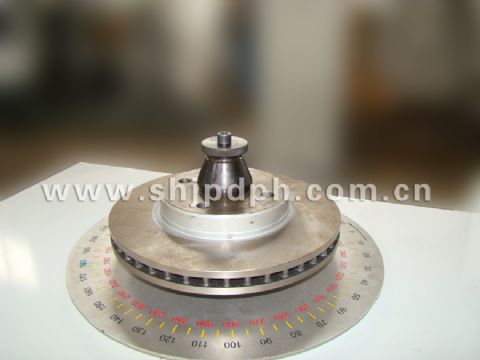

Brake disc Balancing Machine(PHD-65)


The balancing machine is a new and widely-used device which has been available and developed in recent years. It is mainly applied to balance all kinds of discoid parts, such as fan brake disk brake drum saw blade belt pulley, etc .. High speed and precision are advanages of thius balancing machine.


Specifications Parameters
Max Mass of Workpiece (with clump) (kg) 65
Max Diameter of Workpiece (mm) 800 ( if the machine is without cover)/510 (with cover).
Height of Workpiece (mm) 160
Rotation Speed of Main Axis (r/min) 700
Motor Power (kw) 2.2
Min Achievable Residue Unbalace Amount (emar) 5g mm/kg
