Conductive Tape / Black Conductive Tape
Conductive Tape / Black Conductive Tape

Conductive fabric tape woven with the grid points and single and two double-sided adhesive is in the high-strength polyester fiber cloth coated with high conductivity of copper and nickel, and then coating the pressure of the high conductivity g force is made from viscose. It has very good flexibility, electrical conductivity, wear resistance and high temperature resistance, and the other with a strong anti-tension and excellent Futie of conductive cloth tape in the dynamic friction and easy corrosion environment, still has a good shielding effect . Widely used in LCD. Circuit board connections. Computer. Communication device crevice of the electromagnetic shielding or grounding, widely used in notebook CABLE wire, certified by UL. The product has good electrical conductivity and shielding effectiveness, good practice friction properties, good adhesion and Z guide metal electrical, conductive fabric for shielding garment processing and upheld for the production of static clothing, shielding clothing, cell phone closed bag, cell phone leather case, laptop bag, credit card-specific package, interior shielding curtains. Conductive fabric is soft, no cutting edges, dirty fingerprints out, engage in oxidation, has good workability, and can withstand temperatures up to 200 ℃, can be processed Valet cutting red type. Detailed technical parameters are as follows:

Backing: polyester fiber

Color: gray. Black two

Total thickness: 0.07 0.12MM ± 0.005mm

Adhesion to steel: 1130N

Surface impedance: 0.03Ω

Anti-friction number: 1,000,000 (NF35B050, ASTM D 4966).

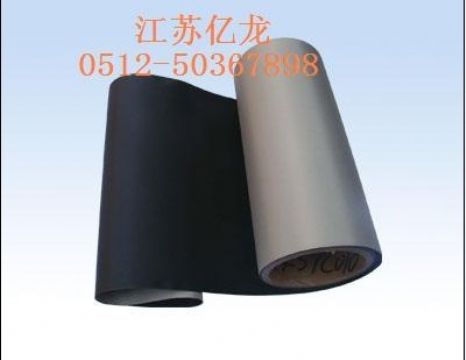

  Black Conductive Fabric

Black Conductive fabric conductive fabric in general based on the increase in tin-nickel plating treatment (blacking coating), carbon black is different from the normal treatment, the surface composition is nickel-tin alloy, tin is actually the so-called conductive fabric, color, blackish. Black Conductive fabric conductive fabric in black check, black plain conductive fabric, conductive black mesh cloth.

General color is gray conductive fabric, easy to use after leaving fingerprints, spots. The company uses nickel-tin alloy plating blackened effectively solved the problem, the conductive net gauze, than similar products with better light transmission, conductivity, shielding better. General fabrics, such as check processing black cloth Zuo more difficult, the company uses with single treatment, the cost of greatly Jiang Di, while performance Geng stable, Zai does not fall under the color temperature, Fang fingerprints, water, also can be an effective solution Cutting wire problem hair.

Performance parameters of conductive fabric

● surface impedance:

0.05ohm / □ mo Test machine (0.5kgf)

● frictional resistance:

> 1,000,000 Wear cycle

Anti-conductive / oxidation resistance

● Shielding Effectiveness:

Gasket at 6mmx10mm Average 115dB from

20MHz to 10 Ghz

● Tolerance Size: H ± 0.02

● Compression ratio: ≤ 10%

● Charge Weight: 2kg

● three conductive layer of conductive fabric characteristics

● has good conductivity and electromagnetic shielding effect, rich soft
