Model: QM-IR100
Min. Order: 1 pcs

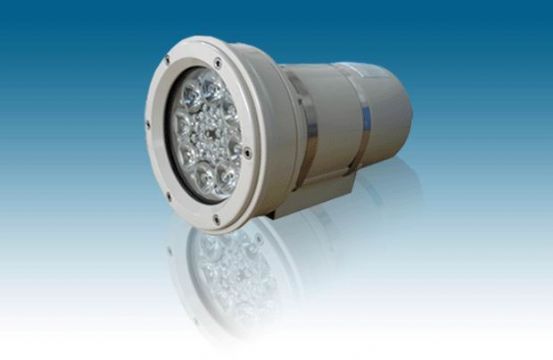

explosion proof IR lamp
The product is designed,produced and tested according to the GB3836.1-2000 and GB3836.2-2000 "Explosion proof electric equipment in Explosion gas envionment"


Model：QM-IR100


Level of Explosion-proof：ExdⅡCT6

Material：Special Charcoal Steel(stainless steel optional)

Function and characteristic： IR irradiation distance is about 120 meters,the IR lamp auto-turn on when the visible light is short.It can work at night and in the dark environment.The luminous flux is higher than 92%,so it can avoid the smooth completely.Explosion-proof,water-proof and dust-proof.


Applied environment: It is suitable for dangerous explosion gas environment.The explosion gas is class IIA,IIB and IIC and the environment group is in the temperature from T1-T6 in Area No.1,No.2,No.20,No.21 and No.22.Such as mine,steamship,gas station,curative,gas storeroom and so on.

Explosion-proof mark ExdⅡCT6
Protect grade IP66
IR visible distance 120 meters
IR wavelength 850nm
IR switch Auto-turn on when the illumination lower than 10Lux
Power supply AC220V
Working current ≤2000mA
Environment temperature -25℃ ~ +70℃
Outer size ￠160mm × 310mm(length)
Weight ≤8kg
