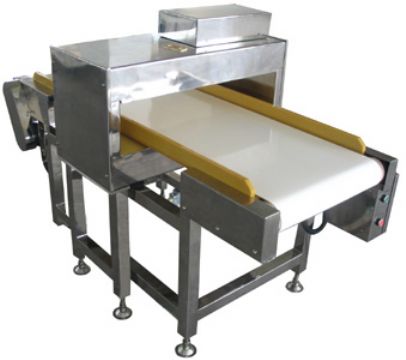

Brand: SBECER/SBEC
Model: JT-500
Min. Order: 1pc
metal detector
food machine
metal detection equipment
【FEATURES】
1.New circuite design,high sensitivity, excellent reliability.
2.Ferrous and Non-Ferrous level dividual adjustment.
3.Double LED line indicate the realtime Ferrous and Non-Ferrous sensitivity exactly.
4.Balance of product essential revise technology.
5.Stainless steel Frame(Optional).

【PURPOSE】
◆ Designed for food industrial and pharmaceutical industrial use.
◆ Also can fit for detecting the chemical products,rubber products.

【SPECIFICATIONS】
▲ Model： JT-500(100)
▲ Detection method： Electric induction
▲ Detection ability： Fe¢1.0mm SUS¢1.5mm(Center of Tunnel)
▲ Detection adjustment： Ferrous and Non-Ferrous level dividual adjustment(1-100)
▲ Detection Width： 500mm
▲ Alarm method： Buzzer、Lamp
▲ Belt speed： 32m/min(50HZ)、40m/min(60HZ)
▲ Power source： AC220V/380V 50-60HZ
▲ Rated ource： Appr140W
▲ Dimension： 1620mm(L)*900mm(W)*1100mm(H)
▲ Weight： Appr190Kg

【SERIES】
height Detection Sensibility Remark
80mm Fe¢0.8mm SUS¢1.2mm Option at Facrory
100mm Fe¢1.0mm SUS¢1.5mm Standard type
120mm Fe¢1.0mm SUS¢2.0mm Option at Facrory
150mm Fe¢1.2mm SUS¢2.5mm Option at Facrory
200mm Fe¢1.5mm SUS¢3.0mm Option at Facrory

▲ The specification is under standard test condition. The sensitivity depends on the
working condition. We have no responsibility that metal chips come out after detecting
under non-standard condition.
