Brand: SBECER
Model: JS-300/120MM
Min. Order: 1set

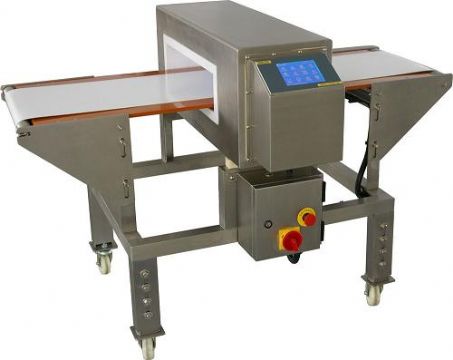

metal detector
metal detection
detector
FEATURES
1 Hi sensitivity and stability
2 Intelligent product study mode, can fit for more types of product.
3 Detecting sensitivity and phase angle dividual adjustment,two frequency optional.
4 Use LCD display and touch-key intergrated panel,friendly interface and easy to operation.
5 Based on digital signal processing technology ,Hi accuracy detection.
6 IP65 product degree and strong stainless steel frame

PURPOSE
Designed for food industrial and pharmaceutical industrial use.
Also can fit for detecting the chemical products, rubber products.

SPECIFICATIONS
Model JS-300(120mm)
Detection Method Balanced Coil
Detection Ability Fe¢0.8mm SUS¢1.5mm Non-Fe¢0.9mm
Detection Adjustment Sensitive(1%-100%) Phase Angle(0°-180°)Adjustable
Tunnel Width 300mm
Alarm Method Buzzer LED
Belt Speed 18-36m/min（Adjustable）
Power Source 220V /380V 50-60HZ
Rated Output Appr.200W
Dimension 1500mm(L)*500mm(W)*750±100mm(H)
Weight Appr.160Kg

JS-300 SERIES
JS Model/Basic Sensitivity Fe SUS Non-Fe
JS-300/100mm ¢0.6mm ¢1.2mm ¢0.7mm
JS-300/120mm ¢0.8mm ¢1.5mm ¢0.9mm
JS-300/150mm ¢1.0mm ¢1.8mm ¢0.95mm
JS-300/200mm ¢1.2mm ¢2.5mm ¢1.3mm
