Brand: topan
Model: TNM59

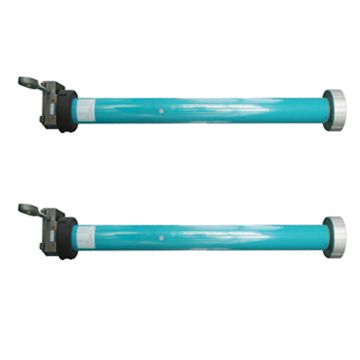

tubular motor
TUBULAR MOTOR SERIES OF TNM59
FUNCTIONS AND FEATURES
It is designed artfully, it is easy to be installed, it has long-life and good security for using.
It applied thread shaft-limit switches, which make it action sensitive and accurate an easy to be adjusted.
The hand-control part solves the case when electricity is cut off but must open or close door.
It is applied in plant ,shop ,garage doors and windows.
PRODUCT PARAMETERS
MODEL
TNM59-60
TNM59-80
TNM59-100
TNM59-110
VOLTAGE（V）
220V/50HZ
CURRENT（A）
1.80
1.85
1.93
1.97
POWER（W）
395
410
428
433
TORQUE（N.m）
60
80
100
110
ROTATE SPEED（r/min）
12
12
12
12
WORK TIME（MIN.）
6
6
6
4
NOTE：all the above products we can afford 220V/60Hz, 110V/50Hz and 110V/60Hz
