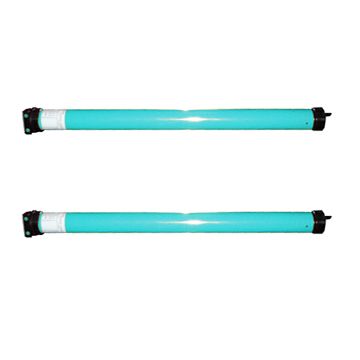

Brand: topan
Model: TNW35
tubular motor
TUBULAR MOTOR SERIES OF TNW35
FUNCTIONS AND FEATURES
It is designed artfully, it is easy to be installed, it has long-life and good security for using.
It applied thread shaft-limit switches, which make it action sensitive and accurate an easy to be adjusted.
It is applied in windows of apartment an house ,which are not used frequently ,it can be used in rolling screen also .
PRODUCT PARAMETERS
MODEL
TNW35-4
TNW35-6
TNW35-8
TNW35-10
VOLTAGE
220V/50HZ
CURRENT
0.50
0.55
0.58
0.65
POWER
80
100
120
145
TORQUE
4
6
8
10
ROTATE SPEED
17
WORK TIME
4
NOTE：all the above products we can afford 220V/60Hz, 110V/50Hz and 110V/60Hz
All the above products we can afford rotate speed is 13r/min.
