Brand: topan
Model: TNM45

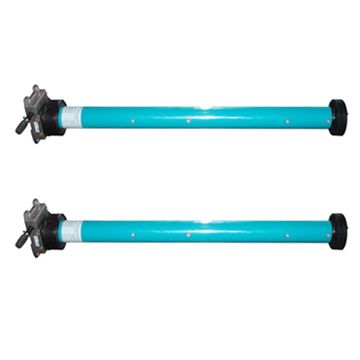

tubular motorTUBULAR MOTOR SERIES OF TNM45
FUNCTIONS AND FEATURES
It is designed artfully, it is easy to be installed, it has long-life and good security for using.
It applied thread shaft-limit switches, which make it action sensitive and accurate an easy to be adjusted.
The hand-control part solves the case when electricity is cut off but must open or close door.
It is applied in small size doors and windows of plant, shop ,garage ,an house .
PRODUCT PARAMETERS
MODEL
TNM45-15
TNM45-20
TNM45-30
TNM45-40
TNM45-50
VOLTAGE
220V/50HZ
CURRENT
0.70
0.75
0.88
1.05
1.20
POWER
155
168
203
238
262
TORQUE
15
20
30
40
50
ROTATE SPEED
13
WORK TIME
5
NOTEļ¼all the above products we can afford 220V/60Hz, 110V/50Hz and 110V/60Hz
