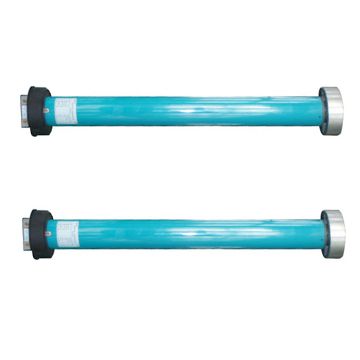

Model: TNW59
tubular motor
TUBULAR MOTOR SERIES OF TNW59
FUNCTIONS AND FEATURES
It is designed artfully, it is easy to be installed, it has long-life and good security for using.
It applied thread shaft-limit switches, which make it action sensitive and accurate an easy to be adjusted.
It is applied in plant ,shop ,garage doors and windows.
PRODUCT PARAMETERS
MODEL
TNW59-60
TNW59-80
TNW59-100
VOLTAGE（V）
220V/50HZ
CURRENT（A）
1.80
1.85
1.93
POWER（W）
395
410
428
TORQUE（N.m）
60
80
100
ROTATE SPEED（r/min）
12
12
12
WORK TIME（MIN.）
6
6
6
NOTE：all the above products we can afford 220V/60Hz, 110V/50Hz and 110V/60Hz
